Ball Screw Driven Slide

Ball Screw Driven Slide
Ball Screw Driven Slide JDBS-150

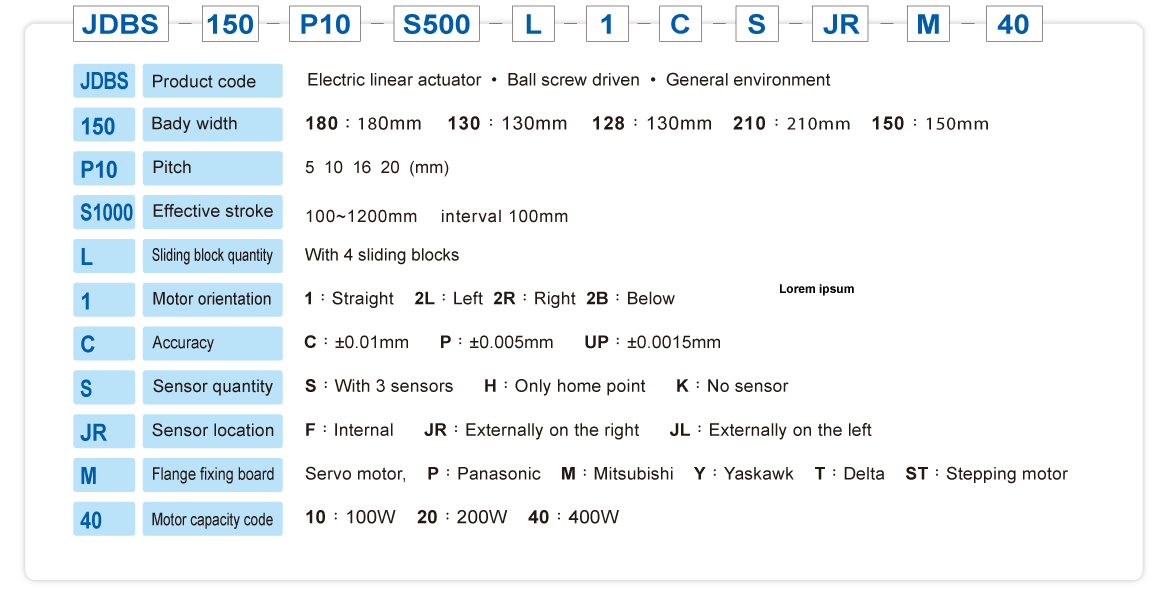

Prev Inquiry
Applicable Motor AC-400W / 220V
Slide Track and Slide 15mm 2Slide Tracks, 4 Slides
Specified Torque 1.3 N.m
Repetitive Precision ± 0.01 mm
External Diameter of Ball Screw ø16 mm, ø20 mm
Pitch Lead Screw 5 mm 10 mm 16 mm 20 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1000 mm/sec
Max. Weight Horizontal 85 kg 60 kg 45 kg 35 kg
Vertical 35 kg 20 kg 14 kg 12 kg
Sensor Model No. 674 x 3 pcs / 671 x 3 pcs
Load Torque  Ma: 126 N.m
 Ma: 109.2 N.m
 Ma: 109.2 N.m

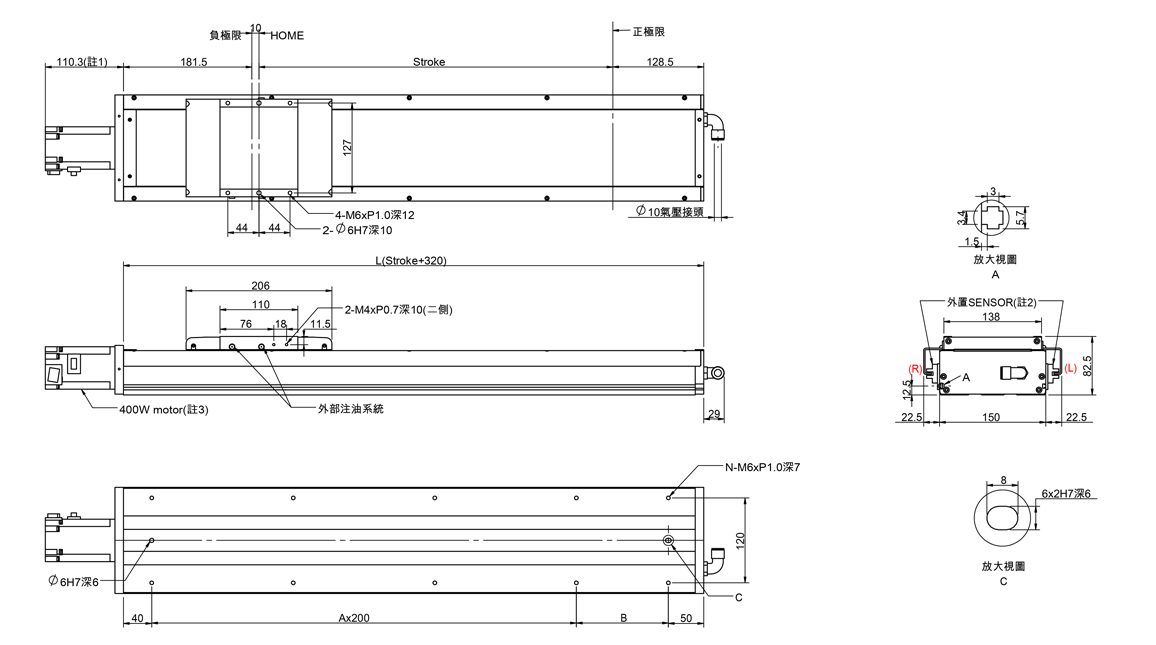

JDBS-150 Specification of Direct Type-1

1. Length varies depending on the motor
2. External SENSOR installation (optional on the right or left side)
3. Compatible with 100W, 200W, and 400W motors
4. For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw transmission

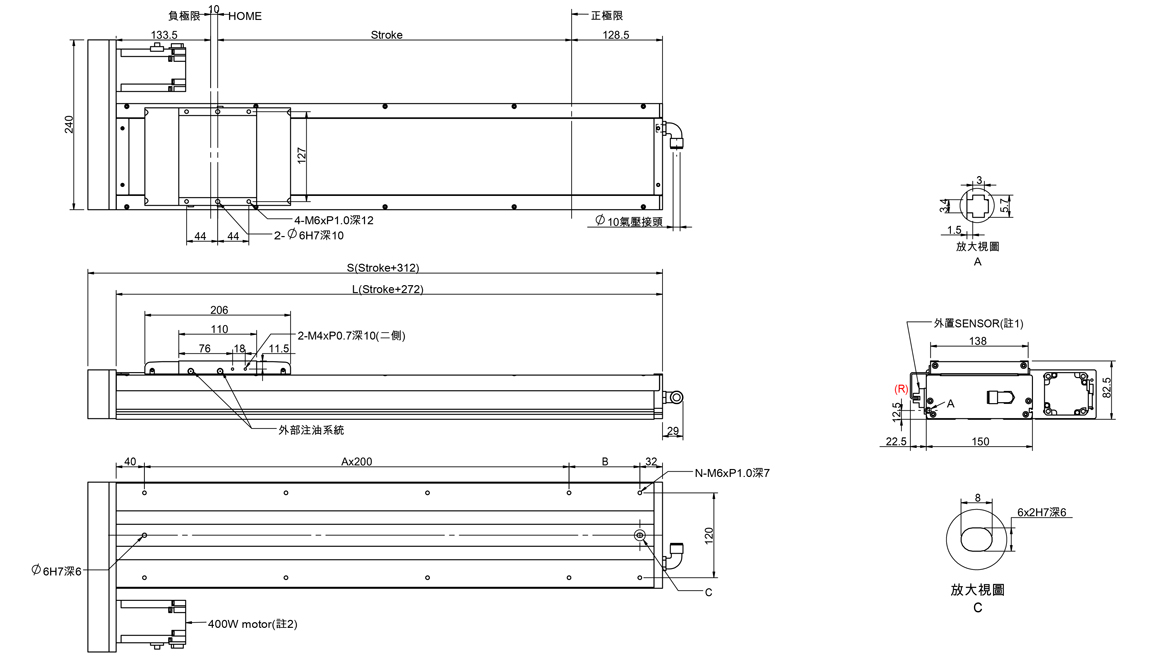

JDBS-150 Specification of Direct Type-2L

1. External SENSOR installation on the right side
2. Compatible with 100W, 200W, and 400W motors
3. For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation

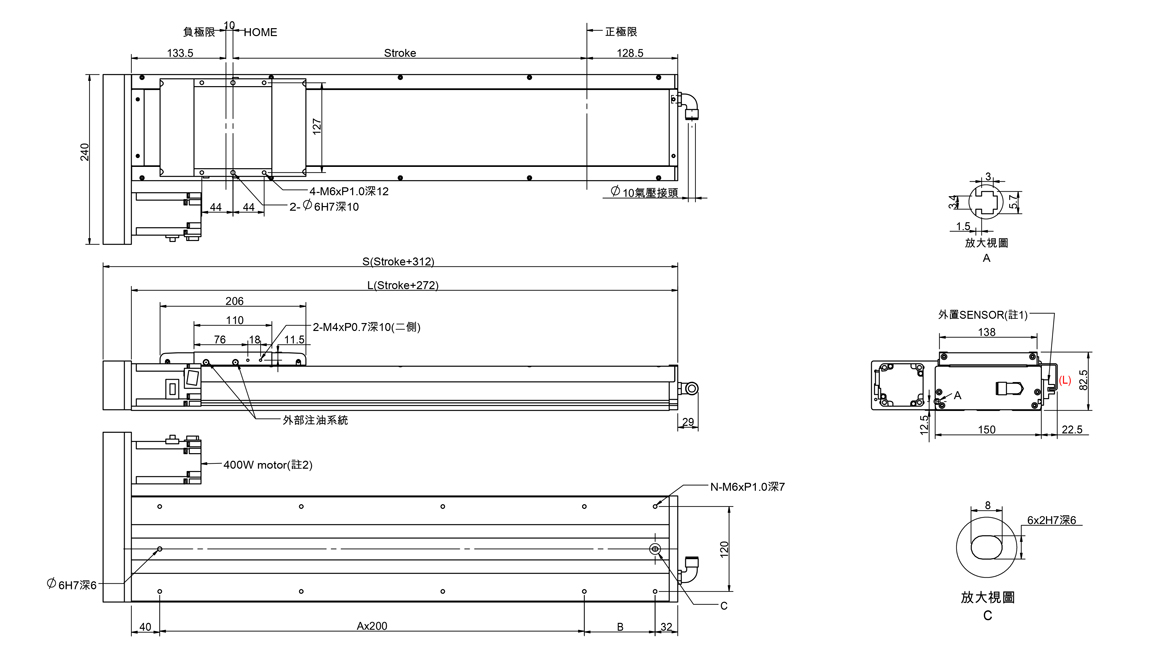

JDBS-150 Specification of Direct Type-2R

1. External SENSOR installation on the left side
2. Compatible with 100W, 200W, and 400W motors
3. For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation

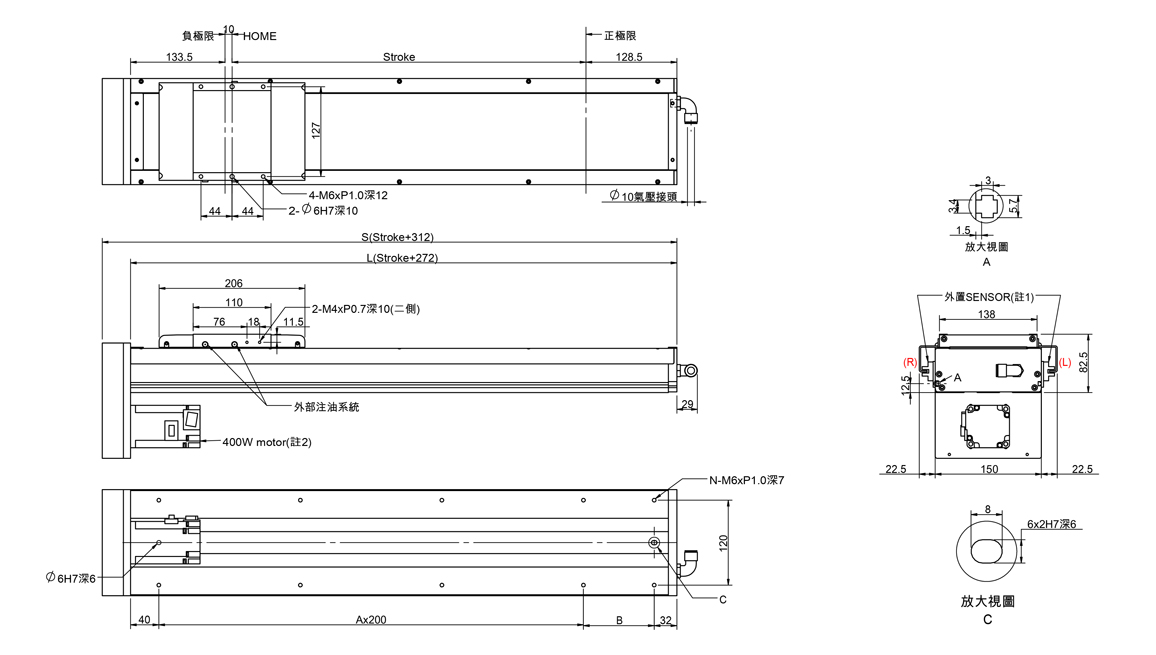

JDBS-150 Specification of Direct Type-2B

1. External SENSOR installation (optional on the right or left side)
2. Compatible with 100W, 200W, and 400W motors
3. For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation
