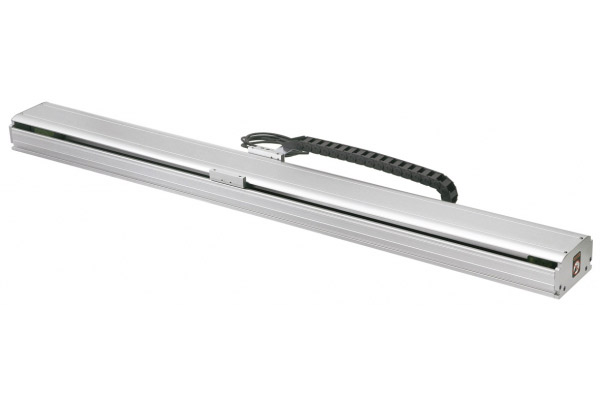

Robot Arm Linear Actuator JDLM-130SF-16
Prev Next Inquiry
Product Introduction

Unit: mm

  Load 0° 45° 90°
Horizontal 1 Kg 380 400 450
2 Kg 220 250 270
3 Kg 160 190 200
4 Kg 120 140 150
5 Kg 100 110 130
Wall hanging 1 Kg 440 390 320
2 Kg 260 230 180
3 Kg 180 170 120

Resolution 0.001 mm (HEIDENHAIN, RENISHAW)
Rated thrust 17 N
Acceleration thrust 90 N
Rated current 0.51 A
Accelerating current 2.7 A
Thrust constant 33
Back E.M.F. constant 11 V/ m/ s
Line resistance 55 Ω
Line inductance 24 mH
Magnetic pole distance 60 mm
Max. acceleration 3.5 G
Max. speed 3 m/s
Repeat precision ±0.0005 mm
Max. load Horizontal 5 kg
Wall hanging 3 kg
Effective stroke 100~1300 mm (100 Interval)
Power supply 220 V
Working temperature 0~40 °C
Storage temperature -20~60 °C

JDLM-130SF-16 Specification
