Ball Screw Driven Slide (4 slides) JDB-150

Standard Type
Motor Capacity: 400W

Prev Inquiry
Product Introduction
Applicable Motor AC-400W / 220V
Slide Track and Slide 15mm 2 Slide Tracks, 4 Slides
Specified Torque 1.3 N.m
Repetitive Precision ± 0.01 mm
External Diameter of Ball Screw ø16mm, ø20mm
Pitch Lead Screw 5 mm 10 mm 16 mm 20 mm
Highest speed 250 mm/sec 500 mm/sec 800 mm/sec 1000 mm/sec
Max. Weight Horizontal 85 kg 60 kg 45 kg 35 kg
Vertical 35 kg 20 kg 14 kg 12 kg
Sensor Model No. 674 x 3 pcs / 671 x 3pcs
Load Torque (N.m) Ma: 126 N.m
Ma: 109.2 N.m
Ma: 109.2 N.m

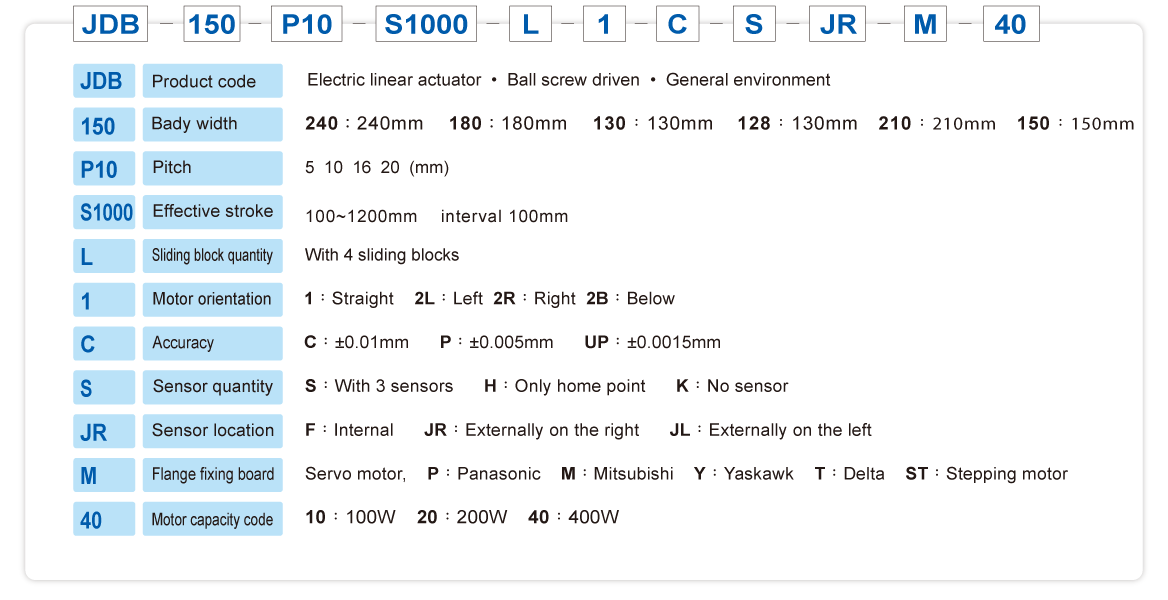

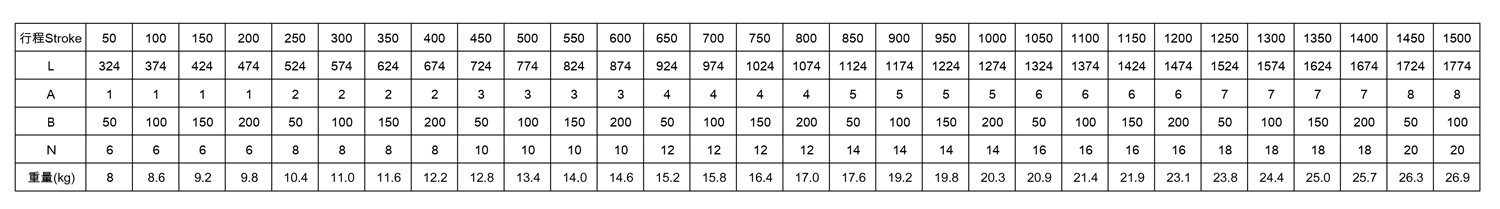

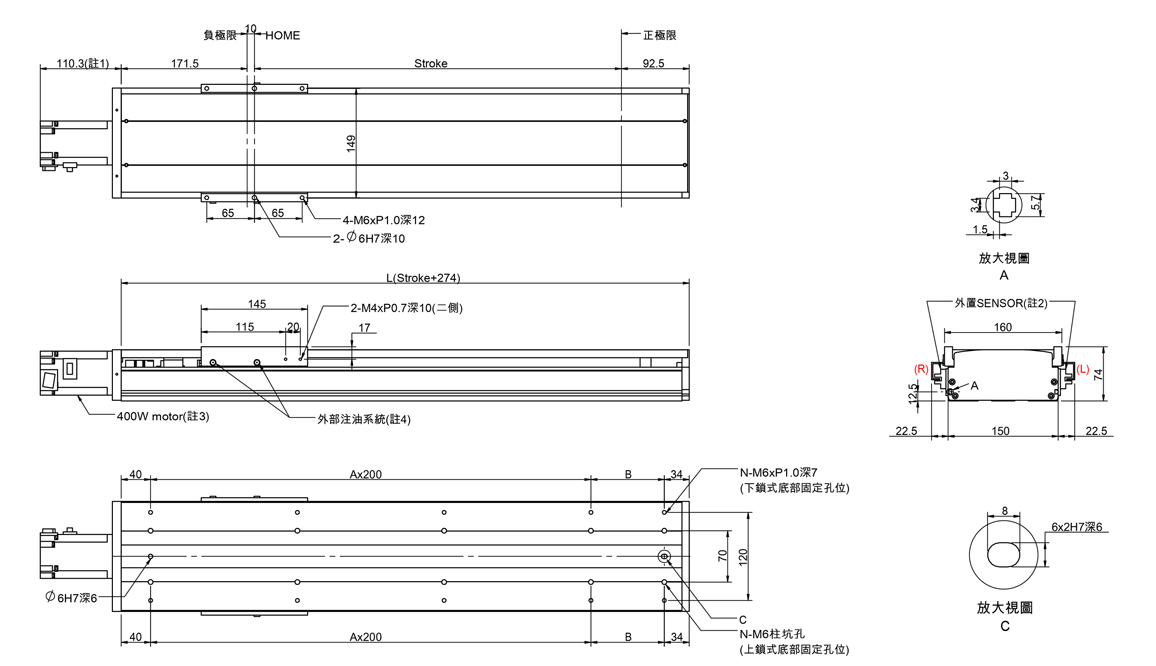

JDB-150 Specification of Direct Type-1

1: External SENSOR installation (optional on the right side or left side)
2: Compatible with 100W, 200W, and 400W motors
3: External lubrication system is optional
4: For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw transmission.

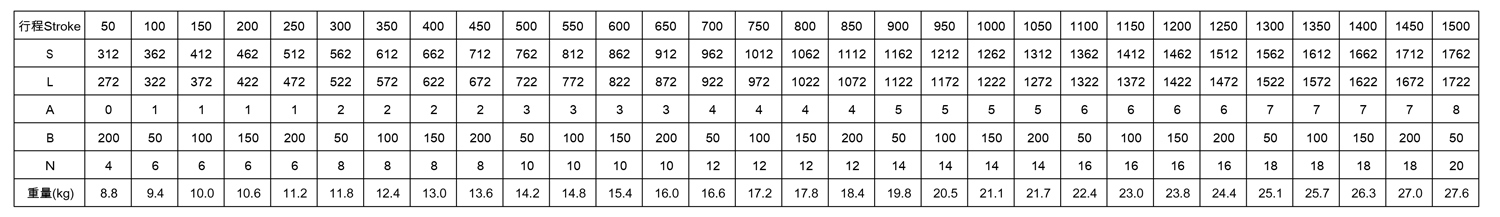

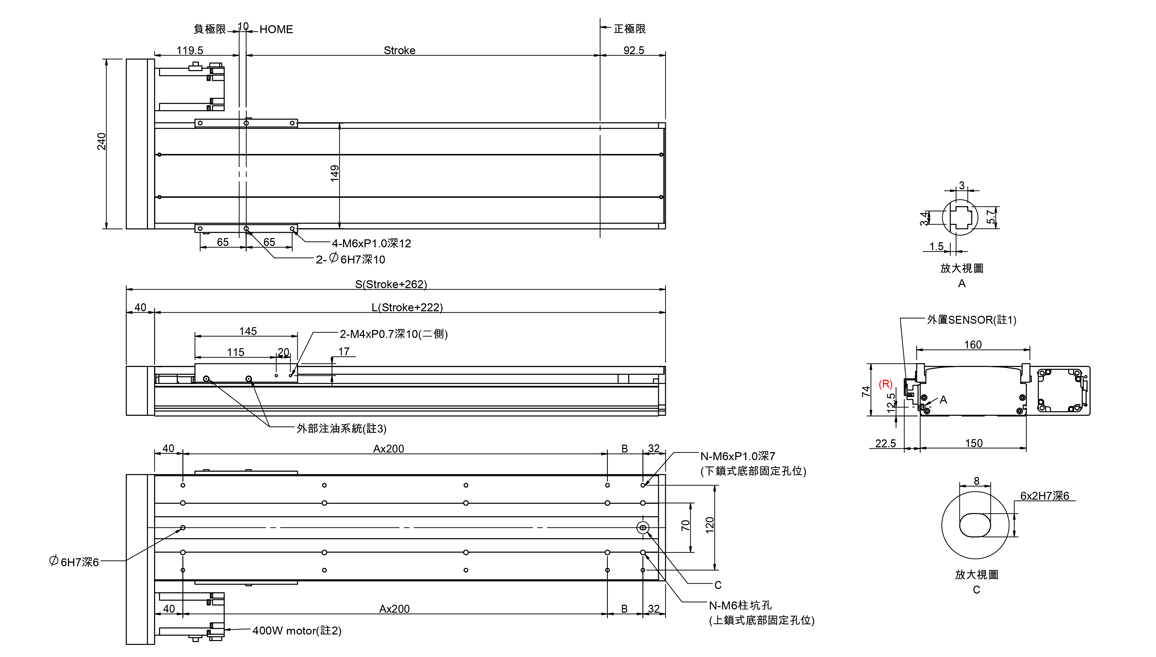

JDB-150 Specification of Indirect Type-2L

1: External SENSOR installation on the Right side
2: Compatible with 100W, 200W, and 400W motors
3: External lubrication system is optional
4: For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation.

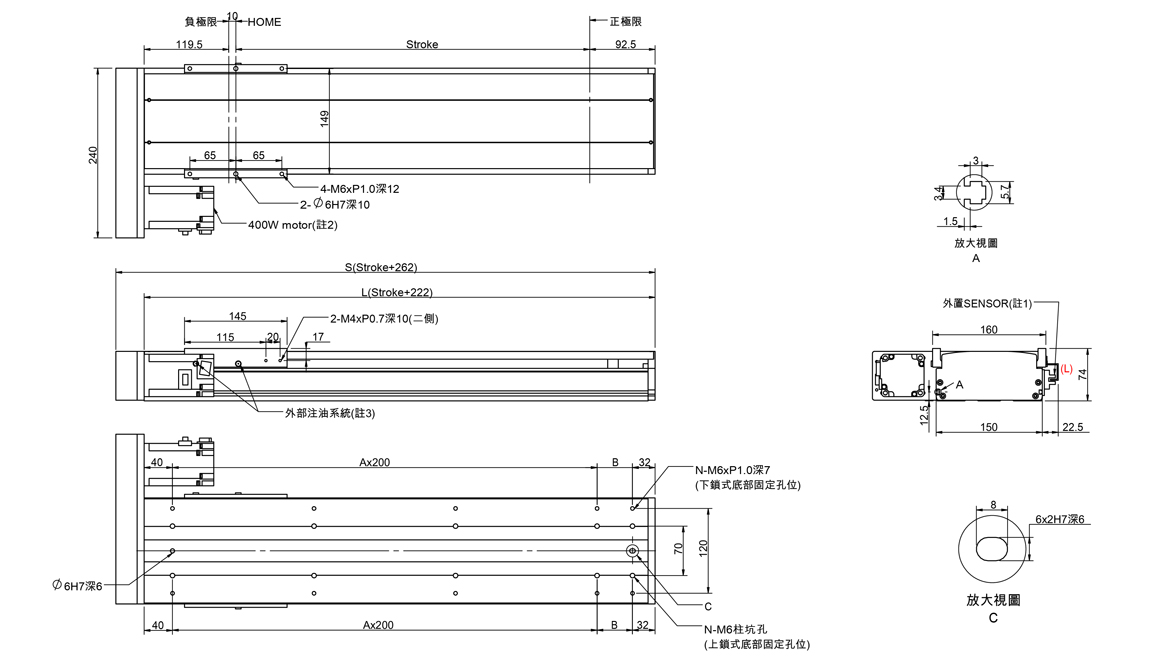

JDB-150 Specification of Indirect Type-2R

1: External SENSOR installation on the left side
2: Compatible with 100W, 200W, and 400W motors
3: External lubrication system is optional
4: For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation.

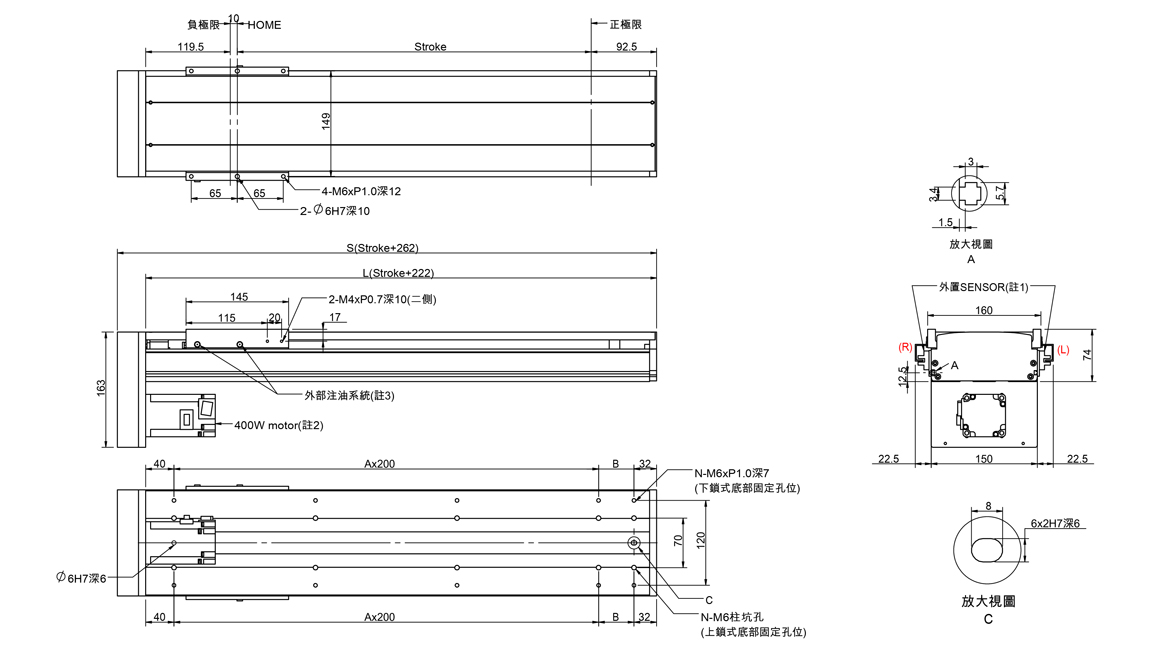

JDB-150 Specification of Indirect Type-2B

1: External SENSOR installation (optional on the right side or left side)
2: Compatible with 100W, 200W, and 400W motors
3: External lubrication system is optional
4: For a stroke of 1200–1500 mm, the screw exceeds the slenderness ratio; pre-tension is applied at the rear end to reduce deflection during screw operation.
