Belt Driven Slide (4 slides)

Semi-dense belt drive slide table (4 sliders)

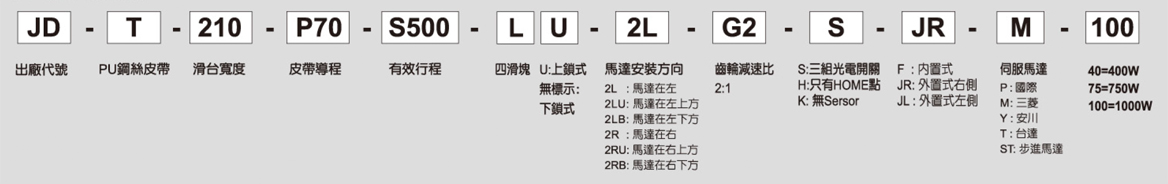

Belt Driven Slide (4 slides) JDT-210
Dust-proof Standard Type
Motor Capacity: 1000W

※Load capacity is the data without reducer installed
※There are four options for motor installation direction
※Customized itinerary is available
Prev Next Inquiry
Product Introduction
Applicable Motor AC-220W / 1000W
Slide Track and Slide 25mm 2 Slide Tracks, 4 Slides
Specified Torque 3.2 N.m
Repetitive Precision ± 0.04mm
External Diameter of Ball Screw (mm) PU Steel wire belt / Width: 50mm
Pitch Lead Screw (mm) 70
Highest speed (mm/sec) 3500
Max. Weight (kg) Horizontal ※120kg Requires external reducer
Reducer 3、4、5、6、7、9、10、15、20 比
Sensor Model No. 671 x 3 pcs / 670 x 1pcs
Static allowable load inertia
 MY 5570 N.m
MP 5570 N.m
MR 12100 N.m
JDT-210 Forward load-free
Static load rating 117426 N
Dynamic rated load 6895 N
JDT-210 -2L

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR ：

  1. +LS
  2. HOME
  3. -LS

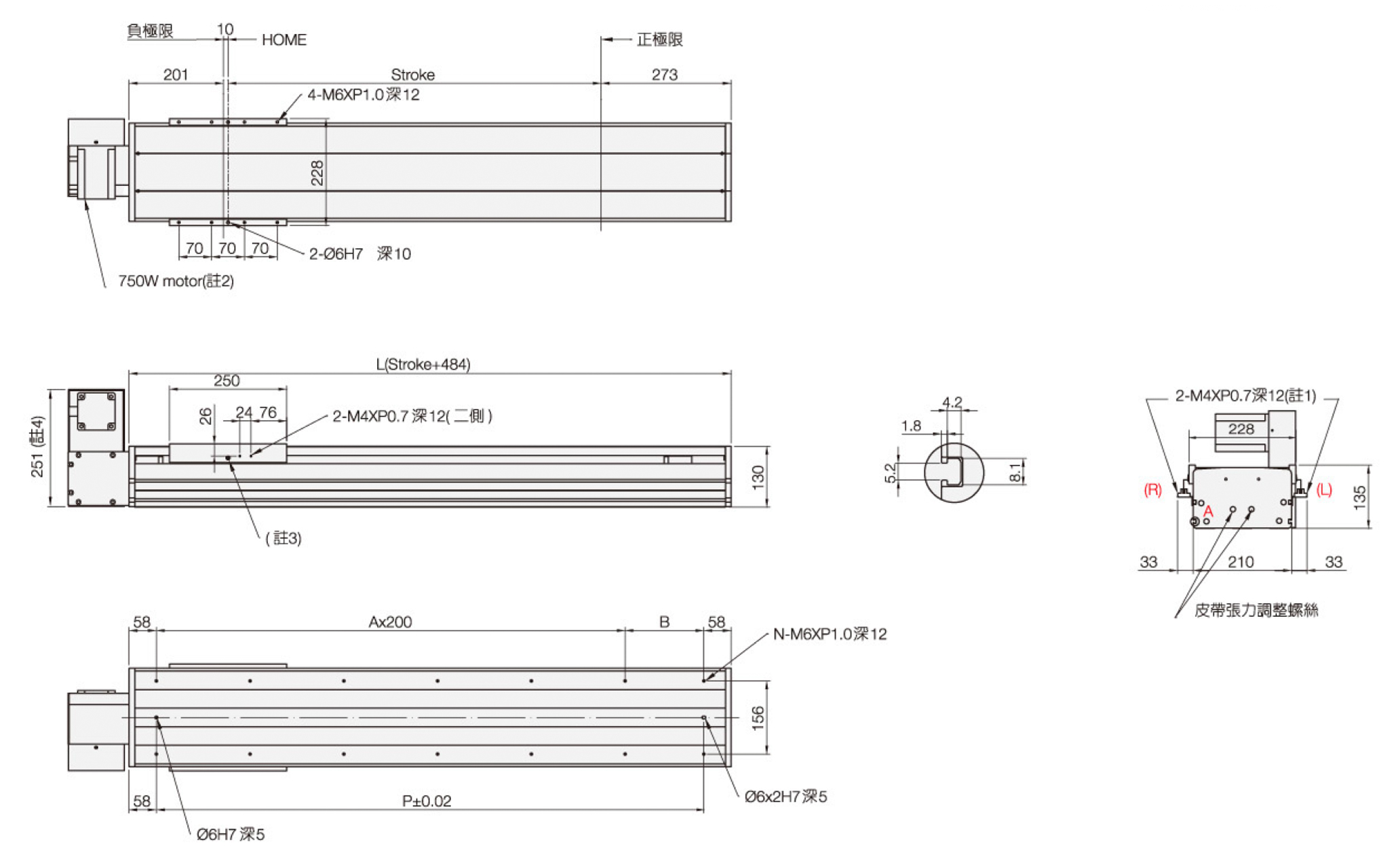

JDT-210 Specification-2LU

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-180 Specification-2LB

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS

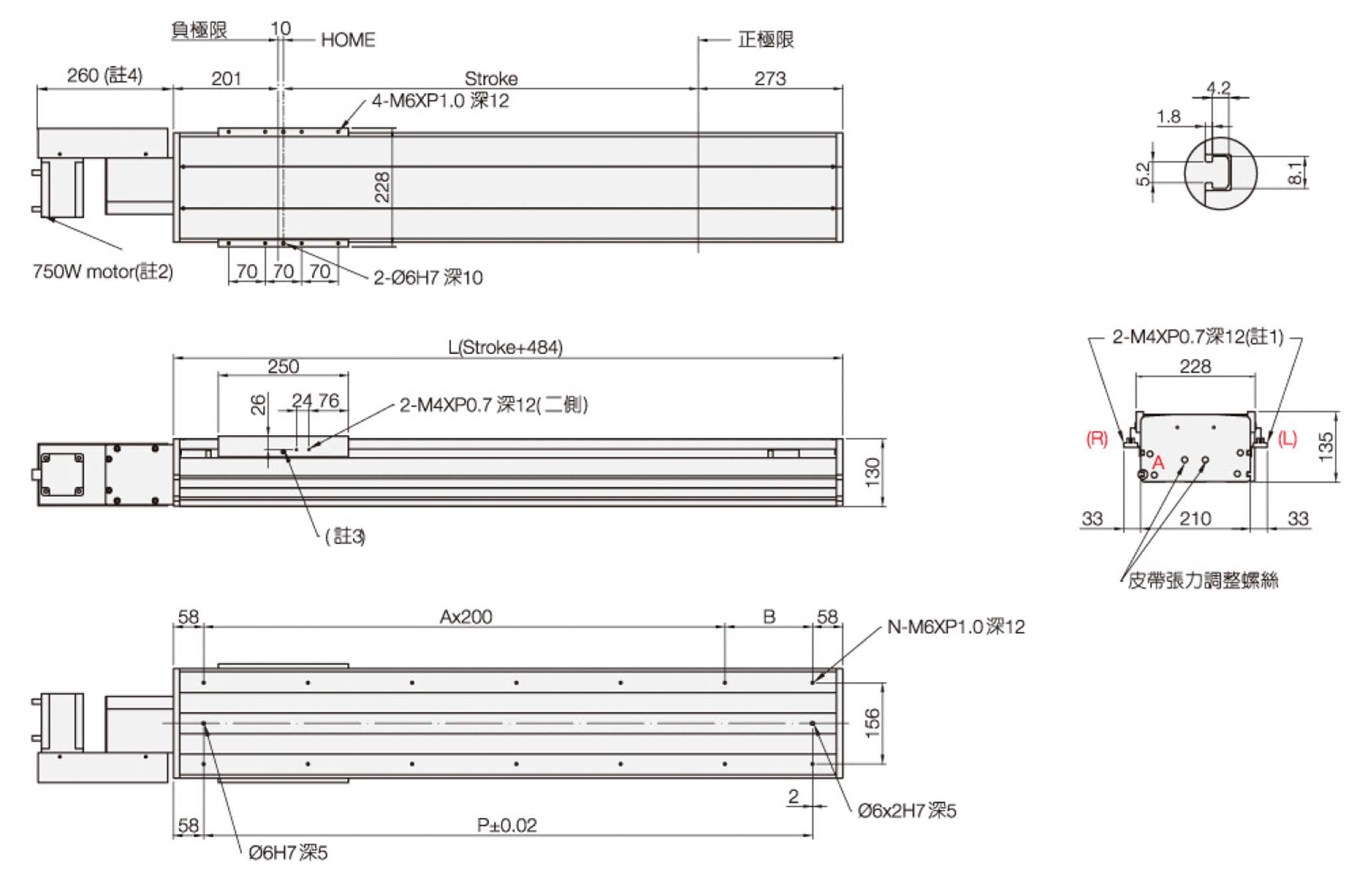

JDT-210 Specification-2R

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-180 Specification-2RU

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
JDT-210 Specification-2RB

1. We install the sensor outside(right or left side)
2. Applicable motor: 400W, 750W, 1000W
3. The oiler is optional accessory
4. The dimension of machine changes according to different motor

SENSOR：

  1. +LS
  2. HOME
  3. -LS
